Product Information
?Get 15% off on the ON-OFF control switch panel!?Use code?SW15?at checkout.
¡ï?Please watch this video for more details about the product: https://youtu.be/BtSBGVcyHlQ
Specification :
Working voltage: DC 12-24V
Rated voltage: 12V 20A / 24V 10A
Switch operation: On-Off
Operating at 12 Volts: max power rating of 600W
Operating at 24 Volts: max power rating of 1200W
Max current: 60A
Operating temperature: -40¡ãC ~ +105¡ãC
Waterproof rating: IP65
Features:
?8 Gang Switch Panel
- 8 Gang on-off control switch panel.?It allows you to control up to 8 different LED lights or devices. Command all your vehicle accessories by the tap of your finger.?
- Green?Backlight.?Adopt?capacitive sensing technology with?green indicator light display.?Waterproof IP65, high sensitivity, stability and strong anti-interference ability.
- Backlight brightness automatic dimmable. The switch backlights will automatically be at full brightness in daylight and other bright places for easy visibility. At night or in tunnel,?the switch panel backlights will automatically dim to reduce the impact on the driver's vision.
- Safety protection. Built-in resettable fuse, reverse polarity protection, over-voltage protection, and over-current protection.?The fuse adapter make it easy to connect the control box to the vehicle's fuse box without cutting, splicing or damaging the original wiring in the vehicle.
- Customize your own switch panel?with universal stickers.?Use the provided switch labels to indicate what¡¯s connected to that switch.?
- With?2?types of mounting brackets, you can?mount the panel in the best location for your vehicle, such as the dash panel, center console, overhead sunglasses holder, etc.
- Universal fitment.?Widely use for Truck, Boat, Car, Bus, Off-road, Powersports, Marine, ATV, UTV, SUV, Side by Side,?SxS, Heavy-duty machines, etc.
?47 Inch Extension Cable
- There is a 4-pin aviation video cable, a cable for transmitting video and power.
- It is widely used in truck / Trailer/Bus / Motorhome / long-distance Parking Aid, and connected with vehicle monitoring CCTV system.
- Compatible products: professional CCTV / monitor 4-pin connector monitor, rearview camera, DVD player TV box.
- Power input DC 12V - DC 24V.
- Specially thick hard wire 100% provides super protection against EMI interference and RF interference such as automotive circuit interference.
?120 Universal Stickers
120 Universal Stickers works with?QP008526(AR-800), QP002559(BA80), QP002983(GA80), QP006231(GB80), QP006232(BB80), QP006237(BC60), QP006238(GC60)
Package?Included :

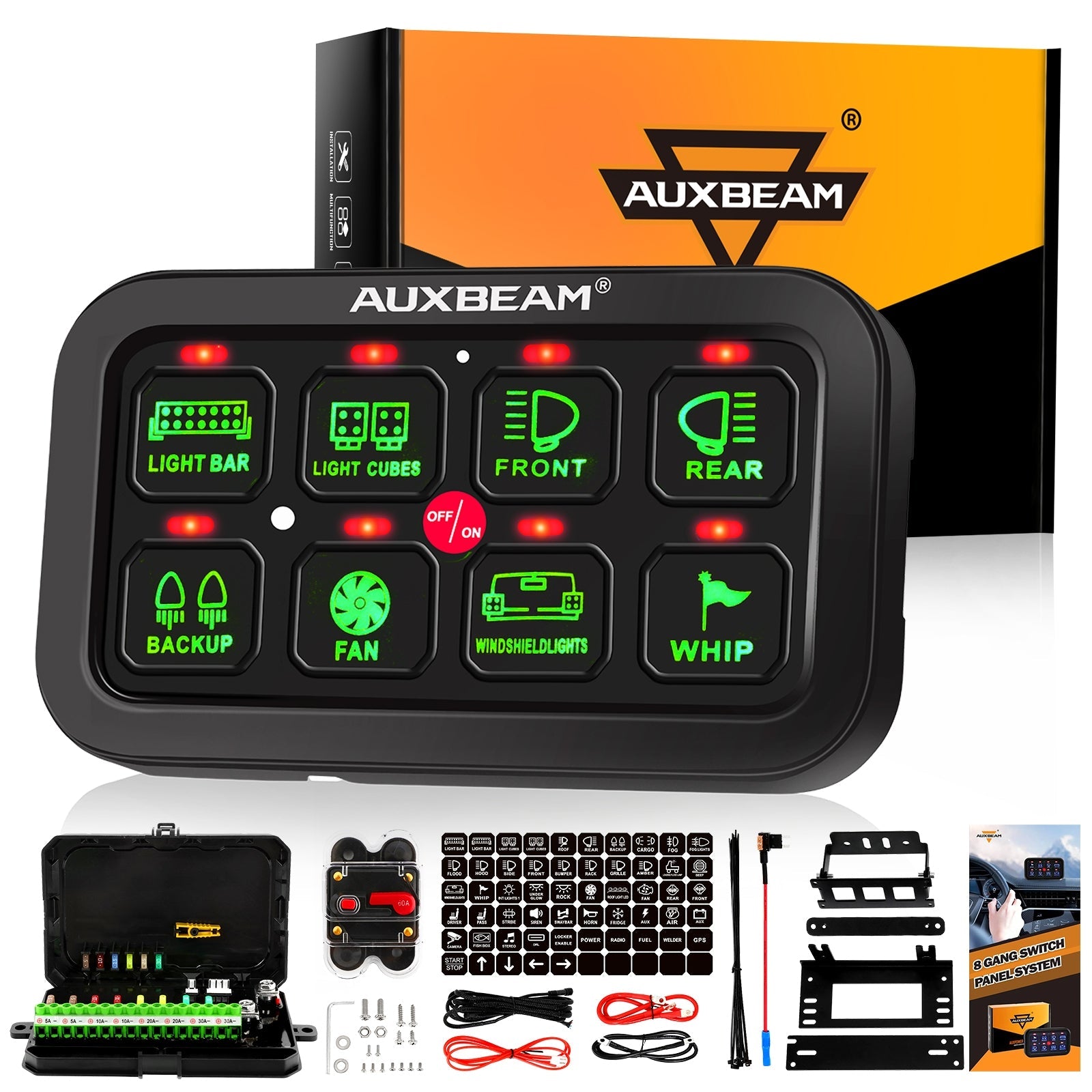

1 Set of 8 Gang on-off Control Switch Panel
1*Extension Cable?(OPTIONAL)
1pcs*120?Universal Stickers(OPTIONAL)
1*Waterproof Silicone Cover(OPTIONAL)
Installation Guide£º
* Total power will go to 600w at 12V, 1200W at 24V and the maximum current is 60A.
The maximum output current of?circuit?1 & 2 is 30A, the maximum output current of?circuit?3-8 is 20A.
* The recommended connection method is gradually decreasing the current
from circuit 1 to circuit 8.
* Make sure all the lamps are connected before connecting the power cable.
The maximum output current of?circuit?1 & 2 is 30A, the maximum output current of?circuit?3-8 is 20A.
* The recommended connection method is gradually decreasing the current
from circuit 1 to circuit 8.
* Make sure all the lamps are connected before connecting the power cable.
Guideline for connecting the red control cables:
The red cable connects the master switch power cable to the ACC.If you want to light up the LED lamps before the car start-up, please connect the recommended because the higher the power is, the more the power of the battery will be consumed.
