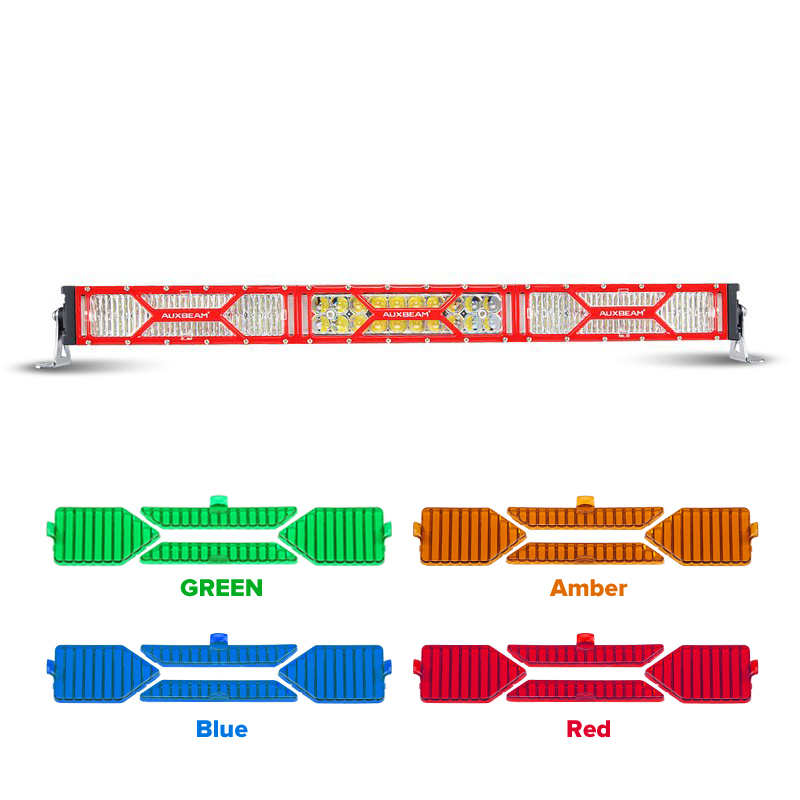

32 inch 180W X-Series Combo Red Frame LED Light Bar with DRL

Special fit with our quad row light bar Wiring Harness

SKU: 77712806

Detachable PC light covers: Red & Green & Blue & Amber & White; Spot & Flood
World-famous chips, Dual Row LED Light Bar with DRL, daytime+night driving
Designed to Project light on extreme distance or through the dark while consuming little power
Pending aperture system blocks unused light for a clean and even beam
Provides Full light and low beam function to suit different driving conditions
Oversized heat sink,full aluminum profile for extra strength
Optional installation: side brackets & bottom mounts are both included

Power: 180W
Number of Chips: 60pcs*3W LEDs
Working Voltage: DC 10V~30V(fit 12V/24V vehicle)
Luminous flux: approx 18000lm
Color Temperature: Pure White 6000K
IP67 water and dust seal, above 30,000 hours life time
Beam Angle: spot beam(30 degree),flood beam(60 degree) with mask
Dimension(without brackets): approx 813mm(32")*68mm(2.7")*78mm(3")
Dimension(with brackets): approx 868mm(34")*95mm(3.75")*78mm(3")
Material: Black die-cast aluminum,PC Lens,PC mask
Metal triangle side bracket,angle adjustable
Certified by CE & RoHS


Application:
Off-Road vehicles-ATVs, SUV, truck,Fork lift,trains,boat
Specialized vehicles-Fire engine,police cars,rescue vehicle,Communication vehicle, military command vehicle etc.
Engineering vehicles-Excavator,dozer,road roller,bulldozer,crane and mining truck etc

Package Included:
1x 180W straight LED Light Bar
2x side mounting brackets 2x bottom slip brackets
2x detachable flood beam clear filters
Necessary mounting hardware included
