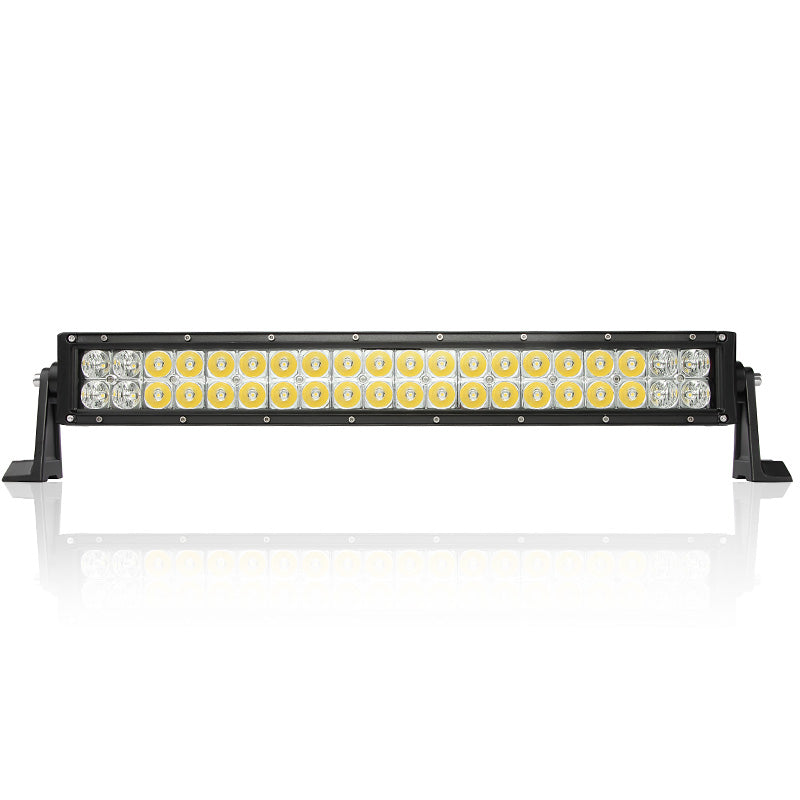

High power 22inch LED light bar
Deep optic reflector, superior spot and flood pattern for ultimate light spread
Project light on extreme distance and width while consuming little power
Full aluminum housing for extra durability while doubling as heat sink
Side brackets raise the light bar height, improve airflow for better heat elimination
With Military breather to discharges water vapour, adjust air balance
IP67 rated waterproof,dustproof and shockproof, anti-corrosion
Technical Specification
Power: 120W---(12000lm)
Working Voltage: DC 10~30V (fits 12V/24V vehicles)
Current: 8.93A@12V, 4.46A@24V
Number of Chips: 40*3W intense LEDs (32pcs for spot beam, 8pcs for flood beam)
Beam Angle: spot beam(30 degree) & flood beam(60 degree) combo
Protection Rate: IP67
Color Temperature: Pure White 6000K
Material: black Die-cast aluminum profile, PC surface
Alu Firm bracket, angle adjustable freely
Dimension(with bracket): approx 627*120*88mm/24.7*4.72*3.46 inch
Dimension(without bracket): approx 528*76*88mm/22*3*3.46 inch
Above 30,000 hours life time
Application:
Offroad vehicle lighting, Emergency & Rescue lighting, ATV/UTV/Golf Cart lighting
Boat & marine lighting, Construction & general labor lighting, Engineering & Agriculture vehicle lighting
Package Included:
1x 120W LED work light bar, A pair of side brackets with bolts
Necessary mounting hardware, like washers, rubber gaskets included
