Full adjustment. Total Performance. The 2021-On Ford Raptor 6 XL Linkable kit was designed for the enthusiast looking to take charge with a light package that is completely customizable for their needs.
This kit includes 6 XL Sports, Links, vehicle specific mounting brackets, up-fitter wiring harness and rock guards. A pre-load support bracket is included to ensure stiffness in the most extreme terrain.
Baja Designs Features:
- Satisfactions Guarantee 30 Day Money Back Guarantee
- Limited Lifetime Warranty Complete Purchase Protection
- uServiceReplaceable Lenses And Optics
- ClearViewAll The Light, Right Where You Need It.
- MoistureBlock Waterproof, Rain Proof, Submersible
- CopperDrive Only LED Driven At 100 percent
- 5000K Daylight Less Driver Fatigue, Natural Color
Specifications:
- Lumens: 18,900 Utilizing 24 LEDs
- Wattage/Amps: 156W / 12A
- LED Life Expectancy: 49,930 Hours
- Front Lens: Hard Coated Polycarbonate
- Housing: Powder Coated Cast Aluminum
- Bezel: Billet Machined Aluminum
- Hardware and Bracket Material: Stainless Steel
- Exceeds MIL-STD810G (Mil-Spec Testing)
- Built-In Overvoltage Protection
- IP69K (Waterproof, Submersible to 9ft)
- IK10 Compliant (Mechanical Impact Testing)
Applications:
2021 Ford Raptor

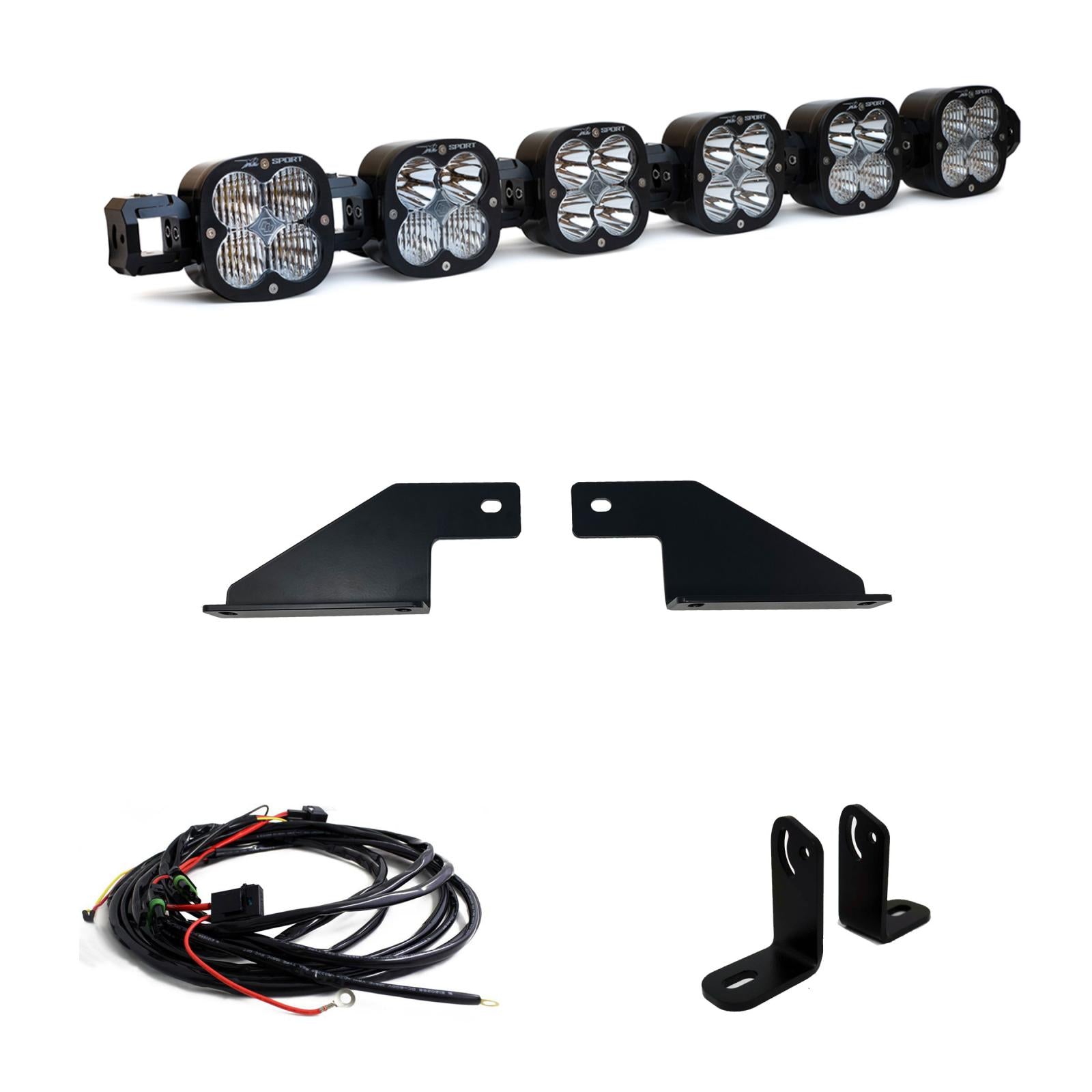

Included:
- x1 6 XL Linkable Kit
- x2 Mounting Brackets
- x1 Pre-Load L Bracket Kit
- x1 Wiring Harness
- All necessary hardware
Patterns:
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42 Degree) and spot (9 Degree) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42 Degree flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 and 2)
Spot: A longer and narrower 9 Degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 and 5)
